Digital distance and positioning measuring system with VGA camera and zoom factor

Mobile Preview: Digital distance and positioning measuring system with VGA camera and zoom factor

Digital distance and positioning measuring system with VGA camera and zoom factor

Product No.:: 4135101
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Optional:

Measuring length:

£ 2,100.48

excl. Shipping costs

Description

Description

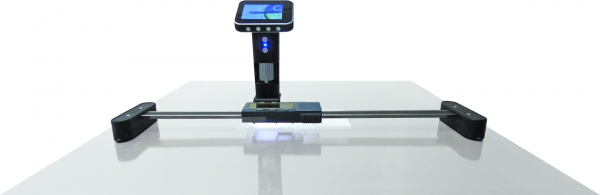

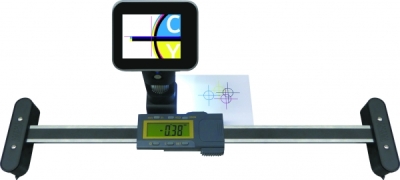

Digital distance and positioning measuring system: big LCD with clear reading, digit height 14 mm

Electronic unit and LCD screen are mounted on the sliding parts
Tempered and stainless steel rail
Feet with magnets, rubber caps (non-slip) and positioning arrows
On/off switch
„0“ option no matter the position, hold measured value function
Preset, origin buttons
Measurement unit switchable mm/inch
2x3 V batteries (CR2032 type), included with delivery

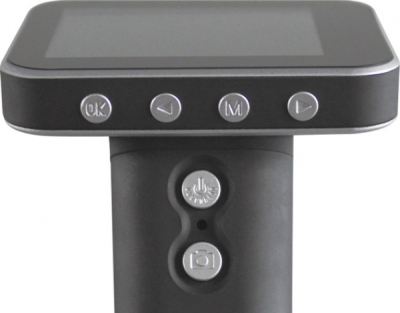

VGA Camera sensor, 3.5“ colour display, 720 pixels
Individual photos: JPG format
Video sequences: AVI format
Focussing with handwheel, manually switchable
Magnification 10x, digital zoom function (in 10%-increments) up to 100x
Display with crosshair reticle

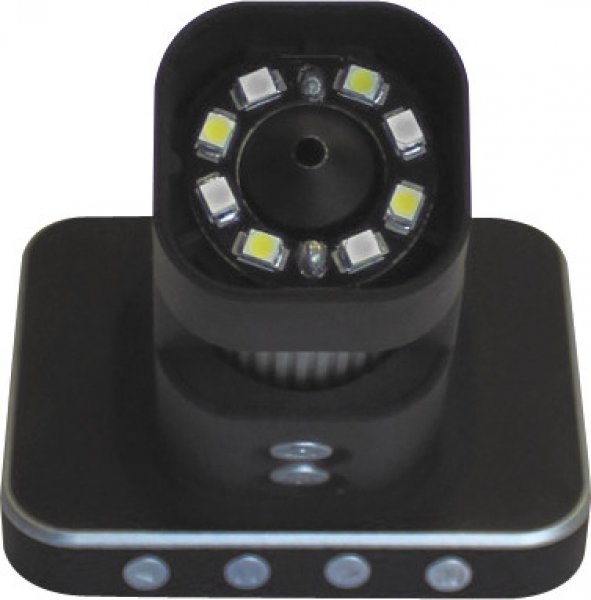

LED light units: • 4 LED white light and 4 LED UV-/ black light, switchable
Light intensity can be adjusted gradually
Rechargeable camera, mini USB port for charging cable

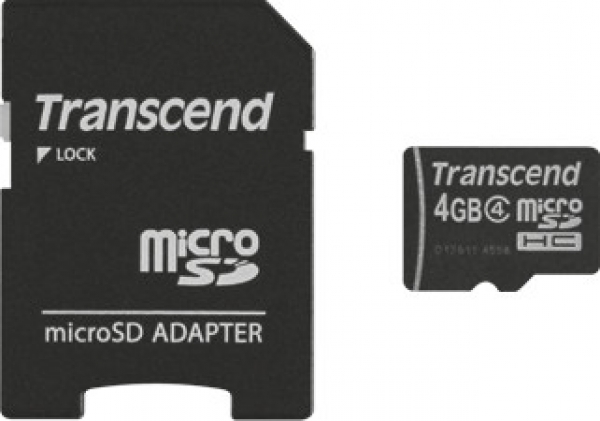

Mini SD card slot with micro SD card included
4 GB with micro SD card adapter included for PC transfer

Art. no.	Scale length mm / inch	Max. error tolerance (±)	Repeat accuracy (±)	Total length in mm	Weight in g
4135101	135 / 5	0.01	0.03	275	470
4135102	185 / 70	0.01	0.03	325	510
4135103	285 / 11	0.01	0.03	425	550
4135104	480 / 18	0.01	0.04	625	660
4135105	580 / 22	0.01	0.05	725	720

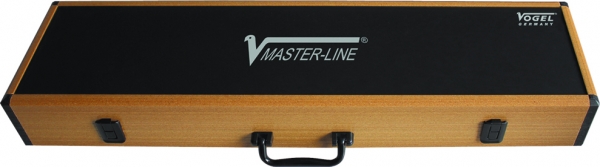

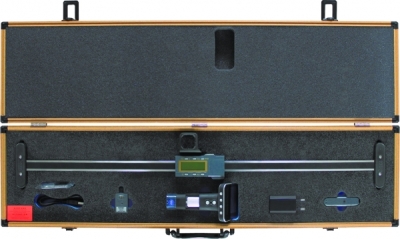

Delivery includes: digital distance and positioning measuring system, VGA camera, micro SD card, 4 GB, micro SD card adapter, USB cable (80cm), charger power supply USB port adapter for power outlet, stable transport and storage case

Optional:

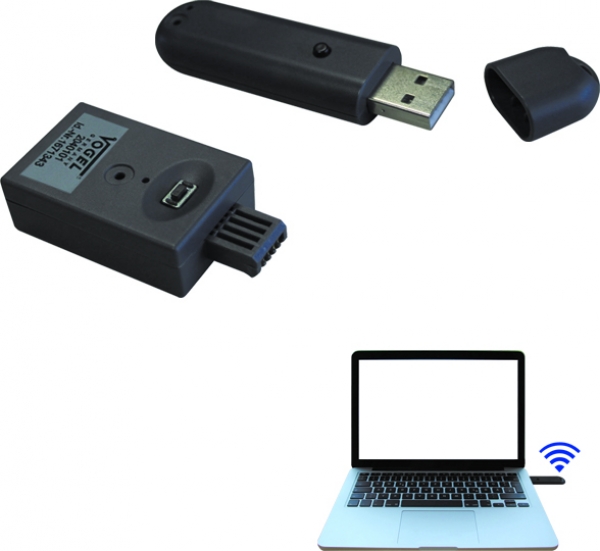

Transmitter and receiver for wireless communication set (Manufacturer No.: 2040101), see last photo.

Fields of application: printing and PCB industry, machine construction and tool manufacturing, textile production, fenestration and facade engineering, automobile industry, and many more applications.

Image source: Vogel Germany GmbH & Co. KG
