- The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
- Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
- These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
- The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
- The image is true-sided.
- The monocular can be focused.
- No scale

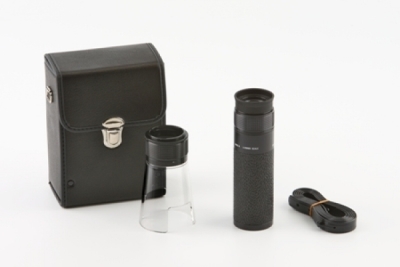

Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.
| |
Monocular with long stand |
Monocular with short stand |
| Magnification monocular without stand |
10x |
10x |
| Magnification monocular, distance 700mm |
15x |
15x |
| Magnification monocular with stand |
30x |
45x |
| Working distance monocular (min.) |
400mm |
400mm |
| Working distance microscope (min.) |
60mm |
66mm |
Visual field monocular, distance 1.000m
|
105m |
105m |
Visual field monocular, distance 700mm
|
60mm |
60mm |
| Visual field with close-up lens |
8mm |
6.3mm |
| Dimensions monocular without stand |
150x42mm |
150x42mm |
| Dimensions monocular with stand |
233x45mm |
233x45mm |
| Weight monocular without stand |
180g |
180g |
Weight monocular with stand
|
238g |
238g |
| Objective aperture |
30mm |
30mm |
| Visual angle |
6° |
6° |
| Relative brightness |
4 |
4 |
| Pupil diameter |
3mm |
3mm |
