Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Mobile Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Mobile Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle
Mobile Preview: Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle

Specwell monocular 8x20, with close-up lens (microscope): 25x or 35x, integrated reticle

Product No.:
4225153
Available! Available! (approx. 2-3 days)
£ 328.00

excl. Shipping costs

Description
  • The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
  • Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
  • These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
  • The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
  • The image is true-sided.
  • The monocular can be focused.
  • Scale: integrated reticle ; reticle length (XY): 5 mm

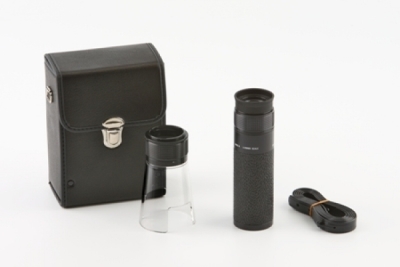

Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.

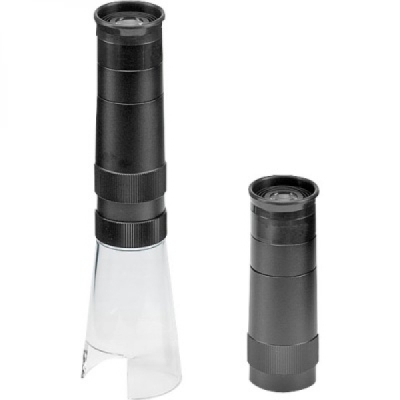

  Monocular with long stand Monocular with short stand
Magnification monocular without stand 8x 8x
Magnification monocular, distance 300mm 17.5x 17.5x
Magnification monocular with stand 25x 35x
Working distance monocular (min.) 300mm 300mm
Working distance microscope (min.) 70mm 60mm
Visual field monocular, distance 1.000m
 		 113m 113m
Visual field monocular, distance 300mm
 		 25mm 25mm
Visual field with close-up lens 9mm 7.2mm
Dimensions monocular without stand 91x32mm 91x32mm
Dimensions monocular with stand 172x45mm 172x45mm
Weight monocular without stand 76g 76g
Weight monocular with stand
 		 110g 110g
Objective aperture 20mm 20mm
Visual angle 7° 7°
Relative brightness 6.2 .2
Pupil diameter 2.5mm 2.5mm
