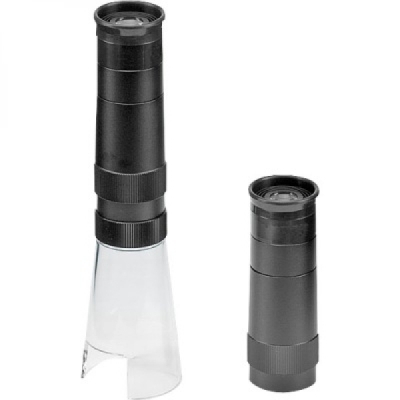

- The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
- Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
- These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
- The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
- The image is true-sided.
- The monocular can be focused.

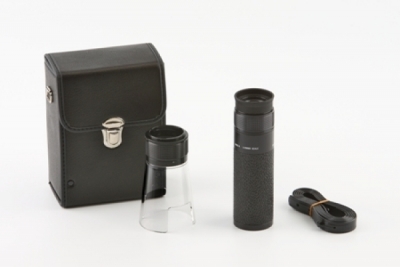

Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.
| |
Monocular with long stand |
| Magnification monocular without stand |
8x |
| Magnification monocular, distance 300mm |
17.5x |
| Magnification monocular with stand |
25x |
| Working distance monocular (min.) |
300mm |
| Working distance microscope (min.) |
70mm |
| Visual field monocular, distance 1.000m |
113m |
| Visual field monocular, distance 220mm |
25mm |
| Visual field with close-up lens |
9mm |
| Dimensions monocular without stand |
91x32mm |
| Dimensions monocular with stand |
172x45mm |
| Weight monocular without stand |
76g |
| Weight monocular with stand |
110g |
| Objective aperture |
20mm |
| Visual angle |
7° |
| Relative brightness |
6.2 |
| Pupil diameter |
2.5mm |
