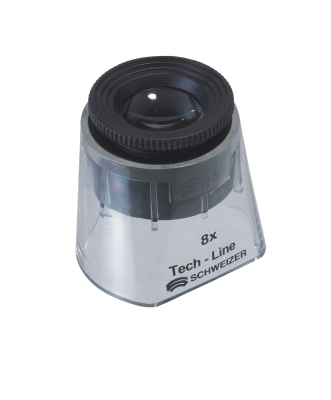

Tech-Line Zoom-Focus - Professional Set
World Class Optics Made in Germany

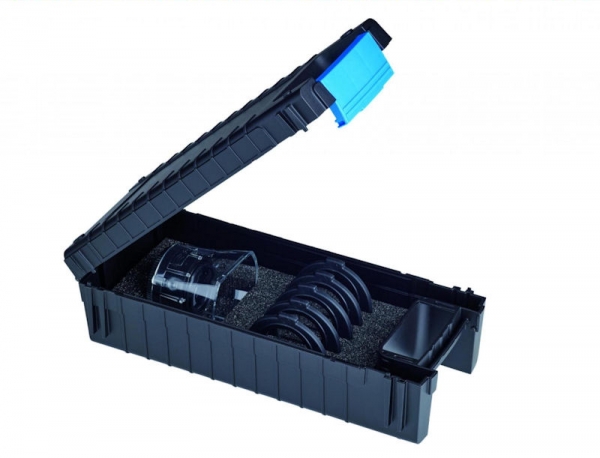

The Zoom Stand Magnifier from Tech-Line is devised for the professional. It contains all 5 available scales which can either be viewed in detail by clicking here.
Ideal for all planar inspections: you can either use this as a stand magnifier or install a scale (reticle, also available) to upgrade it to a measuring magnifier.
Features:
Embedded in the low-reflection, shock-resistant base, the focusable aplanatic lens system fulfills highest optical requirements! The optics are made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image- Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52)

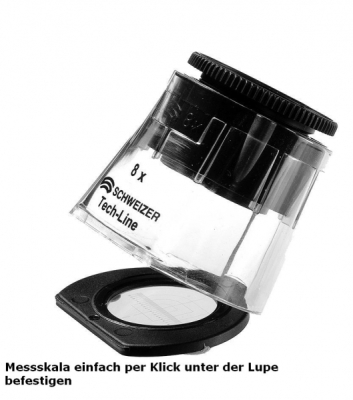

Thanks to a simple guided installation, you can slide in any duo scale you require into the shock-resistant, transparent housing! Information on the scales can be found here ("click")
Available Magnifications: 8x including 5 professional Scales.
Art No. Magni. Diametre Lens Type
09508 8x 22.8 mm aplanatic/glass
High Professional Product Made in Germany
- Housing/Base
Scratch resistent
Low reflection surface
Schock resistent
Measuring Scales Installable (Optional)
- Lens/Optics
Aplanatic lens-system
Silicate Glass
Scratch resistent
High resolution (sharpness)
High contrast image
- Magnification
8x
Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use.
Discover the variety
By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.
The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.
Additional performance:
- High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
- The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
- All magnifiers with a silver coating are coated with a special 2-component-coating:
Resistant to hand perspiration.
Resistant to nearly all solvents/chemicals.
Very hard and plane surface, scartch-resistant and easy to clean.
- Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs (light colour approx. 6000 K).
